HOOGO Flood Barrier System
FM 2510 Certified High-Performance Flood Protection

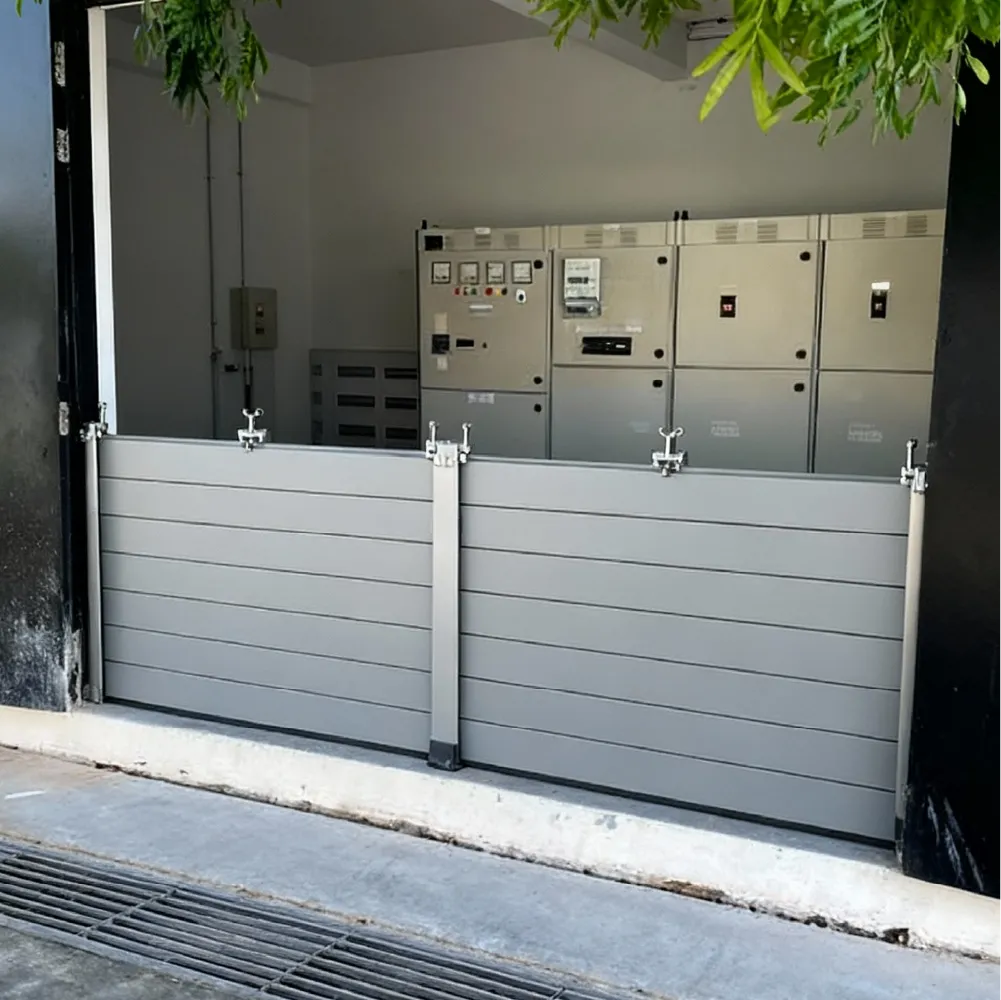

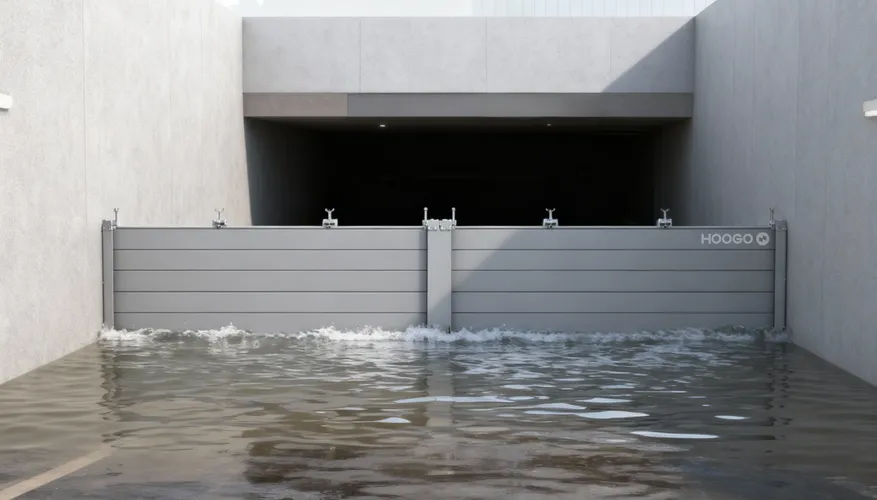

The HOOGO Flood Barrier System is an FM Approved (FM 2510), high-performance, modular engineering solution specifically designed to seal critical building openings against catastrophic water ingress. Recognized worldwide by insurance underwriters, engineering firms, and facility managers, HOOGO provides an officially certified first line of defense to ensure operational continuity and asset protection during extreme flood events—ideal for mission-critical facilities such as data centers, industrial manufacturing plants, power distribution stations, and underground parking structures.
Engineered and manufactured to meet the global gold standard for flood abatement, the system is constructed from structural-grade 6-series aluminum alloy to withstand massive hydrostatic and hydrodynamic loads. Achieving full FM 2510 certification, the barrier is validated through rigorous full-scale testing—including extreme hydrostatic pressure, dynamic impact, long-term durability, and precision leakage assessments—targeting an ultra-low seepage rate (≤1 L/m/h) to safeguard environments where even minimal water intrusion could trigger system failures or structural damage.
Key Technical Edge & FM-Certified Standards
FM 2510 Certified Full-Scale Reliability: Rigorously tested under full-scale operational conditions for structural integrity, hydrostatic load resistance, dynamic impact endurance, and seal durability, giving facility owners total confidence and insurance compliance.
Patented Triple-Action Sealing Technology: Features our proprietary side-pressure mechanism, vertical column compression, and wall-to-column hermetic strips to form a high-tension, water-tight barrier across any architectural opening.
Ultra-Low Seepage Performance: Engineered with precision elastomeric profiles to maintain an industry-leading airtight and watertight seal, preventing seepage even during extended flood inundation.

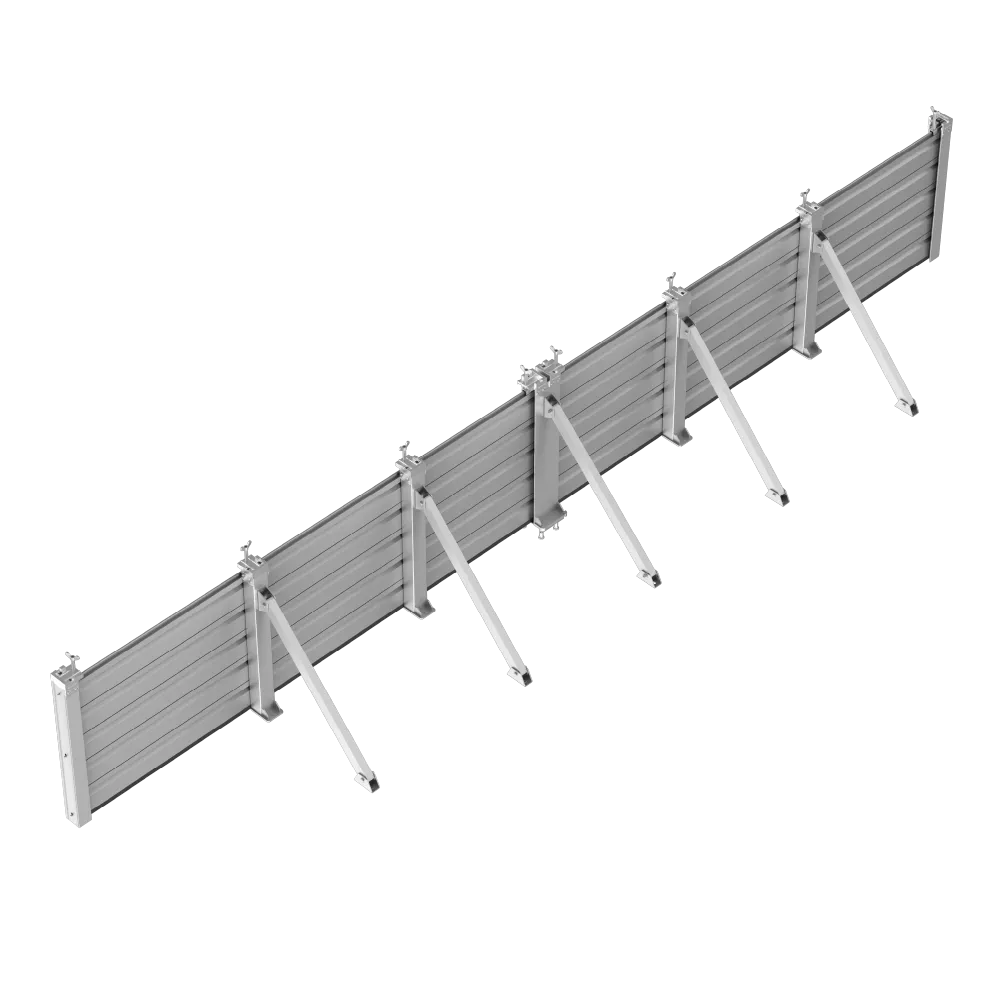

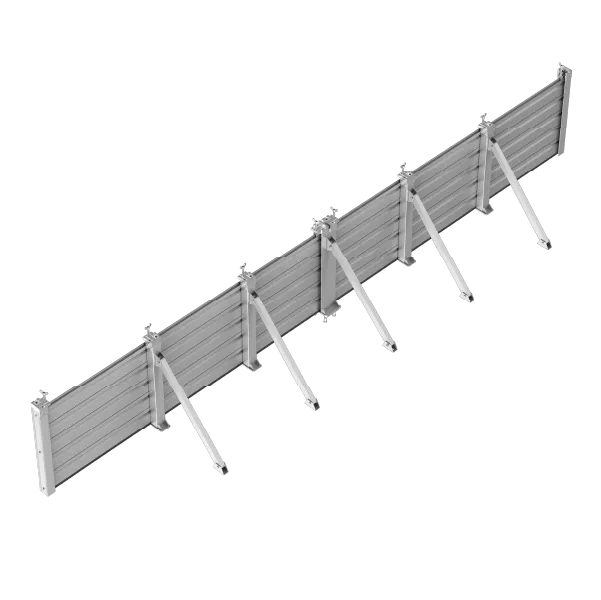

Scalable Modular "Stop-Log" Architecture: Flexible modular design accommodates flood protection heights up to 2.0 meters, allowing rapid, tool-free manual deployment by on-site staff when flood warnings are issued.
Reusable & Corrosion-Resistant Build: Anodized structural-grade aluminum components combined with weather-resistant sealing materials offer exceptional lifespan, minimal maintenance, and fast post-event disassembly.
Flood Barrier System
Precision-Engineered Performance
Designed following the rigorous FM 2510 testing protocols to ensure reliable performance under hydraulic pressure.
Superior Sealing Technology (Triple-Shield Protection)
Patented Side Pressure Sealing (Internal)

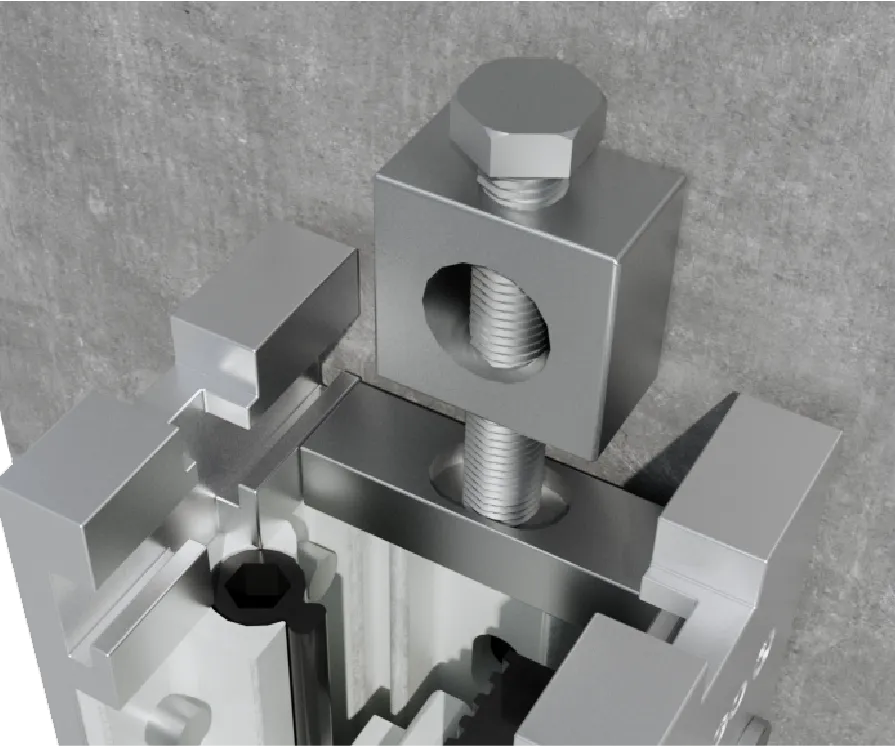

Achieve complete lateral sealing within the system in just 1 second. Our patented side-pressure device ensures that the modular stop log flood barrier is compressed tightly against the frame, eliminating any internal gaps.
Structural Interface Sealing (Wall-to-Column)

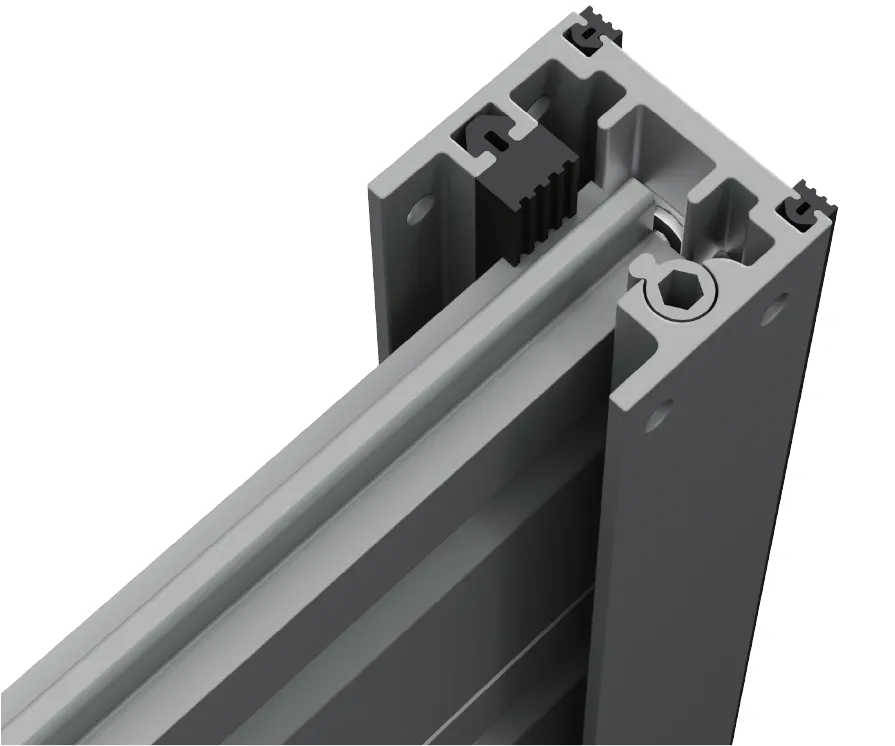

Featuring the Barrier Side Column Sealing Rubber Strip, our system ensures a hermetic seal between the aluminum side columns and the structural wall. This patented design compensates for wall surface irregularities, preventing water bypass at the critical building-interface points.
Precision Bottom Sealing (Ground-Level)

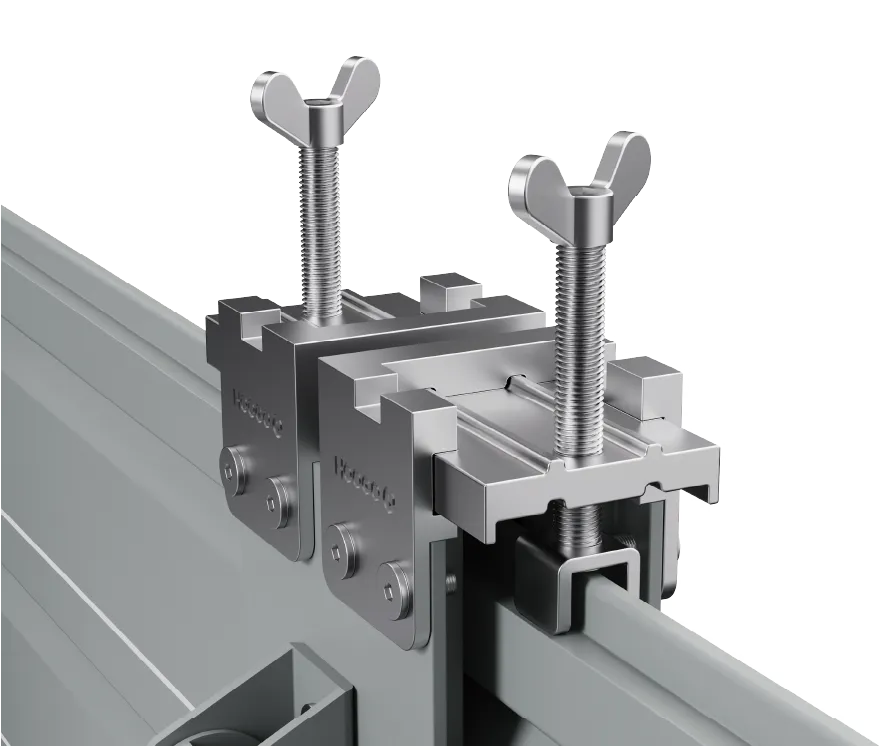

Utilizes a dedicated Barrier Side Column Pressing Device. This mechanical unit exerts a powerful downward force, compressing the bottom-mounted rubber pads against the ground to eliminate any potential gaps.
| Product | Function | Operation | Approved Pre-Installations | Max Approved Water Depth | Max Approved Section Width | ||
| ft | (m) | ft | (m) | ||||
| H1480 | Contingent / Demountable | Active/Manual | In-line with Opening or Face Mount (Exterior of Structure) | 4.7 | 1.44 | 10.3* | 3.15* |
| H1317 | Contingent / Demountable | Active/Manual | In-line with Opening or Face Mount (Exterior of Structure) | 4.2 | 1.28 | 10.3* | 3.15* |
| H1154 | Contingent / Demountable | Active/Manual | In-line with Opening or Face Mount (Exterior of Structure) | 3.7 | 1.12 | 10.3* | 3.15* |
| H991 | Contingent / Demountable | Active/Manual | In-line with Opening or Face Mount (Exterior of Structure) | 3.1 | 0.96 | 10.3* | 3.15* |
| H831 | Contingent / Demountable | Active/Manual | In-line with Opening or Face Mount (Exterior of Structure) | 2.6 | 0.80 | 10.3* | 3.15* |
| H671 | Contingent / Demountable | Active/Manual | In-line with Opening or Face Mount (Exterior of Structure) | 2.1 | 0.64 | 10.3* | 3.15* |
