HOOGO MEP Support Systems
The Next-Generation Anti-Falling Assembly Bracing Solution for Maximum Structural Safety

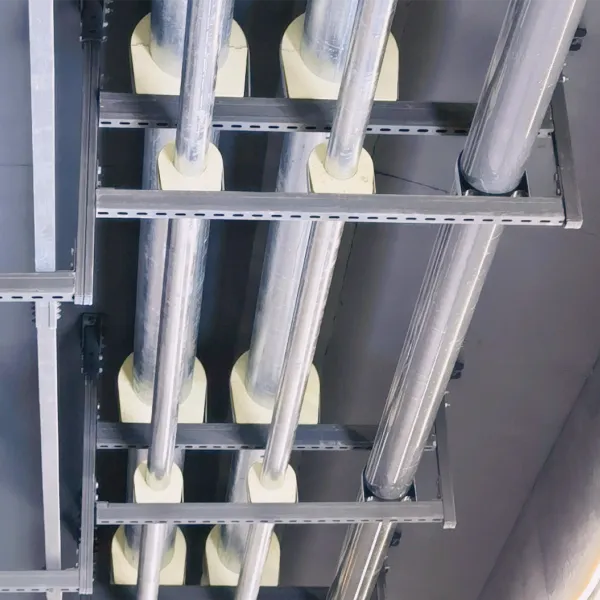

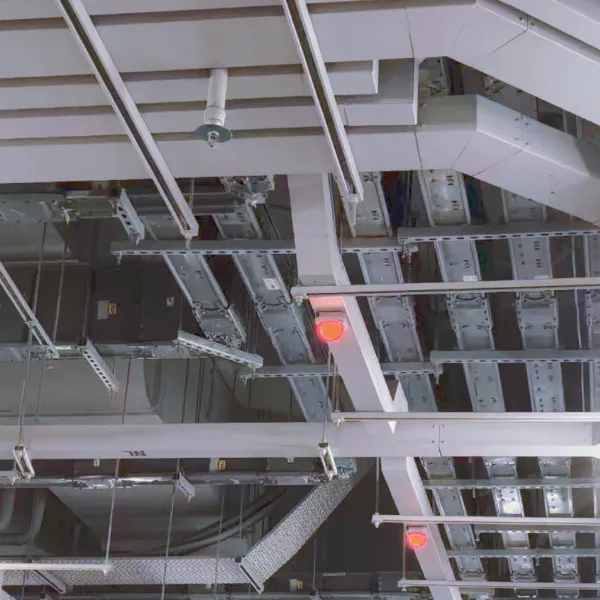

HOOGO MEP Support Systems offer a comprehensive, prefabricated, and high-performance solution designed for modern building services, including water supply, drainage, HVAC, electrical conduit, and fire protection pipelines.
At the core of our system is the self-developed Anti-Falling Support System 3.0, which fundamentally eliminates the catastrophic safety risks common in traditional installations. By combining optimized section channels with innovative interlocking components, HOOGO MEP Support Systems deliver superior load-bearing reliability, exceptional structural stability, and a highly flexible, weld-free assembly process that meets the rigorous demands of global engineering projects.

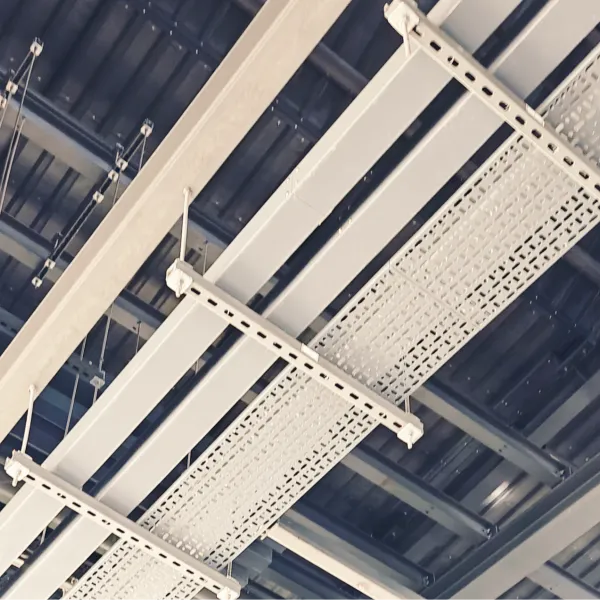

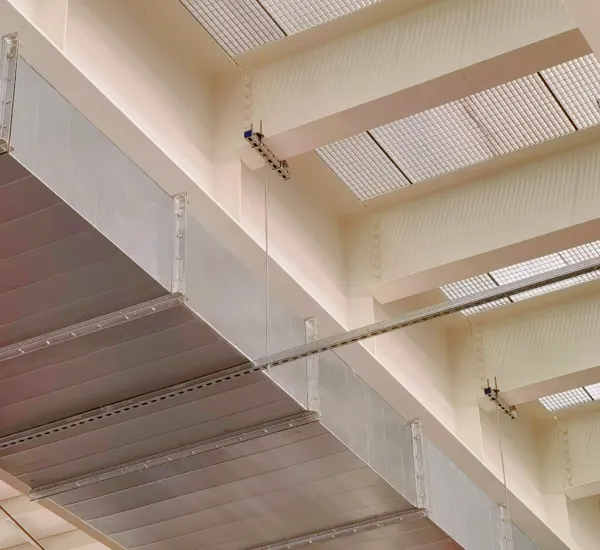

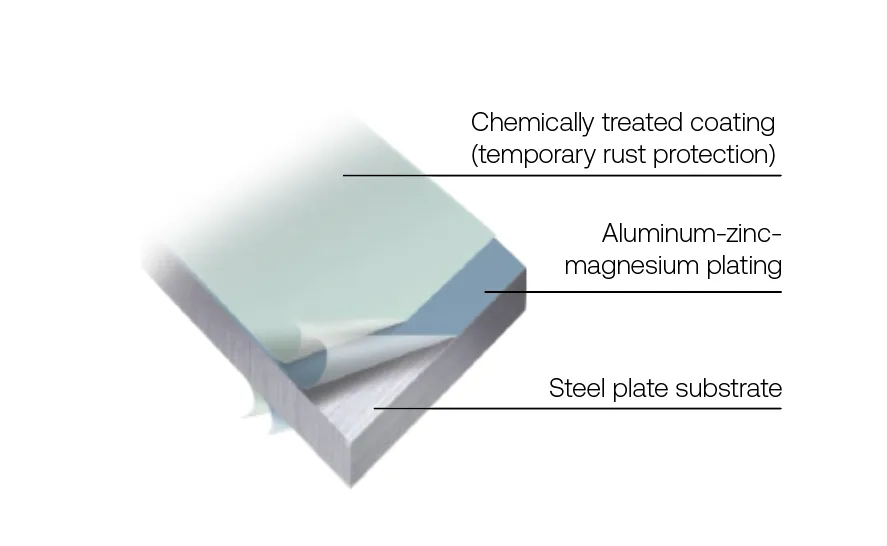

HOOGO® Aluminum-zinc-magnesium Steel Plate
Ultra-High Substrate Strength: Delivers exceptional structural stability with a high minimum yield strength of 395 MPa and a minimum tensile strength of 490 MPa.
Dense Ternary Eutectic Barrier: Formed via high-temperature curing of Zn, Al, and Mg. The dense microstructure of Zn, Al, and Zn2Mg creates a solid surface shield that effectively blocks all corrosion factors.
5x Higher Corrosion Resistance: Exhibits more than 5 times the corrosion resistance of conventional hot-dip galvanized steel sheets (GI, HGI) under the same coating weight.
Exceptional Cut-Edge Self-Healing: Features superior edge-protection. The alloy dynamically migrates to heal cut surfaces, making it a perfect, heavy-duty alternative to traditional hot-dip galvanized products.
Authoritative Safety Patent
Passed National Seismological Bureau Simulation Tests
HOOGO's self-developed anti-falling support system has successfully passed rigorous simulation test reports by the National Seismological Bureau and obtained the official national invention patent (Patent No. ZL201910108945.8), providing certified structural security.
Interlocking Through-Bolt Connection
Fundamentally Eliminating Safety Risks During Installation
Utilizing a specialized "Tooth + Through-bolt" interlocking design rather than traditional friction-based friction joints, the system guarantees significantly higher reliability at connection nodes, completely eliminating potential safety hazards during and after installation.
Highly Flexible Installation
Zero On-site Drilling, Welding, Rust Removal, or Painting
All components are direct-cut and bolted together on-site with zero hazardous operations required. It supports free combination into any required bracing form, allows effortless disassembly, and enables seamless secondary structural extensions.
Optimized Section Engineering
37% Reduction in Steel Consumption Under Identical Loads
Through advanced structural design and cross-section optimization, HOOGO systems reduce steel consumption by 37% compared to traditional welded brackets under the exact same load conditions, significantly lowering dead weight and material costs.
Premium Material Coating
Yield Strength with 3x Higher Corrosion Resistance
Built with Zinc-Aluminum-Magnesium (Zn-Al-Mg) alloy coated steel plates, the base material delivers high yield strength and a superior corrosion resistance that is approximately 3 times higher than ordinary galvanized steel sheets.
Factory Pre-fabrication
Standardized Mass Production to Significantly Shorten Project Timeline
All core channel components and fittings are highly standardized and pre-fabricated in the factory under strict quality control. This minimizes on-site structural processing, drastically improves engineering efficiency, and guarantees a swift, reliable installation timeline for large-scale international projects.
Installation Channels
U Channels, Double Channels
| Material | S235JR, Complying with DIN EN 10025, Q235B, Stainless steel |
| Surface Treatment | AS/NZS 4680:2006; BS6946-1988 |
| Installation Torque | 3.0m / 5.8m, or customized length |
| Pore Diameter | 2.5mm |
| Mechanical Properties | ||||
|---|---|---|---|---|
| Yield Strength fyk (N/mm2) | Allowable Tensile Stress σ (N/mm2) | Allowable Shear Stress τ (N/mm2) | Elastic Modulus E (N/mm2) | Shear Modulus G (N/mm2) |
| 245 | 175.3 | 108.5 | 2.1x105 | 79000 |
21 U Channel - 3.0m: 20253449 / 5.8m: 2025103
|
|
| |
| L (mm) | Fmax (KN) | fmax (mm) | F (mm) |
| 250 | 5.53 | 0.44 | 34.87 |
| 500 | 2.74 | 1.66 | 27.76 |
| 750 | 1.83 | 3.78 | 19.42 |
| 1000 | 1.36 | 6.73 | 12.08 |
| 1250 | 1.12 | 10.52 | 7.91 |
| 1500 | 0.91 | 15.17 | 5.56 |
| 1750 | 0.81 (2) | 20.62 | - |
| 2000 | 0.67 (2) | 26.93 | - |
| 2250 | 0.59 (2) | 34.12 | - |
| 2500 | 0.53 (2) | 42.13 | - |
| 2750 | 0.51 (2) | 50.94 | - |
| 3000 | 0.46 (2) | 60.63 | - |
21 U Channel - 3.0m: 20253447 / 5.8m: 8120061
|
|
| |
| L (mm) | Fmax (KN) | fmax (mm) | F (mm) |
| 250 | 4.95 | 0.36 | 31.37 |
| 500 | 2.46 | 1.53 | 24.99 |
| 750 | 1.64 | 3.43 | 17.46 |
| 1000 | 1.26 | 6.05 | 10.88 |
| 1250 | 0.97 | 9.47 | 7.13 |
| 1500 | 0.85 | 13.66 | 5.02 |
| 1750 | 0.73 (2) | 18.56 | - |
| 2000 | 0.61 (2) | 24.28 | - |
| 2250 | 0.54 (2) | 30.72 | - |
| 2500 | 0.51 (2 | 37.88 | - |
| 2750 | 0.44 (2) | 45.87 | - |
| 3000 | 0.40 (2) | 54.55 | - |
41 U Channel - HP1000
|
|
| |
| L (mm) | Fmax (KN) | fmax (mm) | F (mm) |
| 250 | 14.83 | 0.22 | 45.51 |
| 500 | 7.42 | 0.87 | 36.84 |
| 750 | 4.94 | 1.97 | 28.22 |
| 1000 | 3.71 | 3.5 | 21.44 |
| 1250 | 2.97 | 5.46 | 16.42 |
| 1500 | 2.47 | 7.87 | 13.20 |
| 1750 | 2.12 (2) | 10.71 | 11.00 |
| 2000 | 1.85 (2) | 13.99 | 9.35 |
| 2250 | 1.65 (2) | 17.7 | 8.05 |
| 2500 | 1.48 (2) | 21.85 | 7.01 |
| 2750 | 1.35 (2) | 26.44 | 6.14 |
| 3000 | 1.24 (2) | 31.47 | - |
41 U Channel - HP1000 (T)
|
|
| |
| L (mm) | Fmax (KN) | fmax (mm) | F (mm) |
| 250 | 13.35 | 0.20 | 40.96 |
| 500 | 6.68 | 0.78 | 33.16 |
| 750 | 4.45 | 1.77 | 25.40 |
| 1000 | 3.34 | 3.15 | 19.30 |
| 1250 | 2.67 | 4.91 | 14.78 |
| 1500 | 2.22 | 7.08 | 11.88 |
| 1750 | 1.91 (2) | 9.64 | 9.90 |
| 2000 | 1.66 (2) | 12.59 | 8.41 |
| 2250 | 1.48 (2) | 15.93 | 7.24 |
| 2500 | 1.33 (2) | 19.66 | 6.31 |
| 2750 | 1.21 (2) | 23.80 | 5.53 |
| 3000 | 1.12 (2) | 28.32 | - |
41 U Channel - 3.0m: 20253433 / 5.8m: 2025119
|
|
| |
| L (mm) | Fmax (KN) | fmax (mm) | F (mm) |
| 250 | 13.35 | 0.20 | 41.47 |
| 500 | 6.68 | 0.78 | 33.67 |
| 750 | 4.45 | 1.77 | 25.91 |
| 1000 | 3.34 | 3.15 | 19.81 |
| 1250 | 2.67 | 4.91 | 15.29 |
| 1500 | 2.22 | 7.08 | 12.39 |
| 1750 | 1.91 (2) | 9.64 | 10.41 |
| 2000 | 1.66 (2) | 12.59 | 8.92 |
| 2250 | 1.48 (2) | 15.93 | 7.75 |
| 2500 | 1.33 (2) | 19.66 | 6.82 |
| 2750 | 1.21 (2) | 23.80 | 6.04 |
| 3000 | 1.12 (2) | 28.32 | - |
62 U Channel - HP5500
|
|
| |
| L (mm) | Fmax (KN) | fmax (mm) | F (mm) |
| 250 | 27.04 | 0.14 | 57.03 |
| 500 | 13.84 | 0.57 | 45.91 |
| 750 | 9.23 | 1.29 | 33.78 |
| 1000 | 6.92 | 2.29 | 23.85 |
| 1250 | 5.54 | 3.58 | 17.38 |
| 1500 | 4.61 | 5.15 | 13.76 |
| 1750 | 3.95 (2) | 7.01 | 11.48 |
| 2000 | 3.46 (2) | 9.16 | 9.89 |
| 2250 | 3.08 (2) | 11.59 | 8.72 |
| 2500 | 2.77 (2) | 14.31 | 7.81 |
| 2750 | 2.52 (2) | 17.31 | 7.06 |
| 3000 | 2.31 (2) | 20.61 | 6.43 |
62 U Channel - HP5500 (T)
|
|
| |
| L (mm) | Fmax (KN) | fmax (mm) | F (mm) |
| 250 | 24.34 | 0.13 | 51.33 |
| 500 | 12.46 | 0.51 | 41.32 |
| 750 | 8.31 | 1.16 | 30.40 |
| 1000 | 6.23 | 2.06 | 21.47 |
| 1250 | 4.99 | 3.22 | 15.64 |
| 1500 | 4.15 | 4.64 | 12.38 |
| 1750 | 3.56(2) | 6.31 | 10.33 |
| 2000 | 3.11 (2) | 8.24 | 8.90 |
| 2250 | 2.77 (2) | 10.43 | 7.85 |
| 2500 | 2.49 (2) | 12.88 | 7.03 |
| 2750 | 2.27 (2) | 15.58 | 6.35 |
| 3000 | 2.08 (2) | 18.55 | 5.79 |

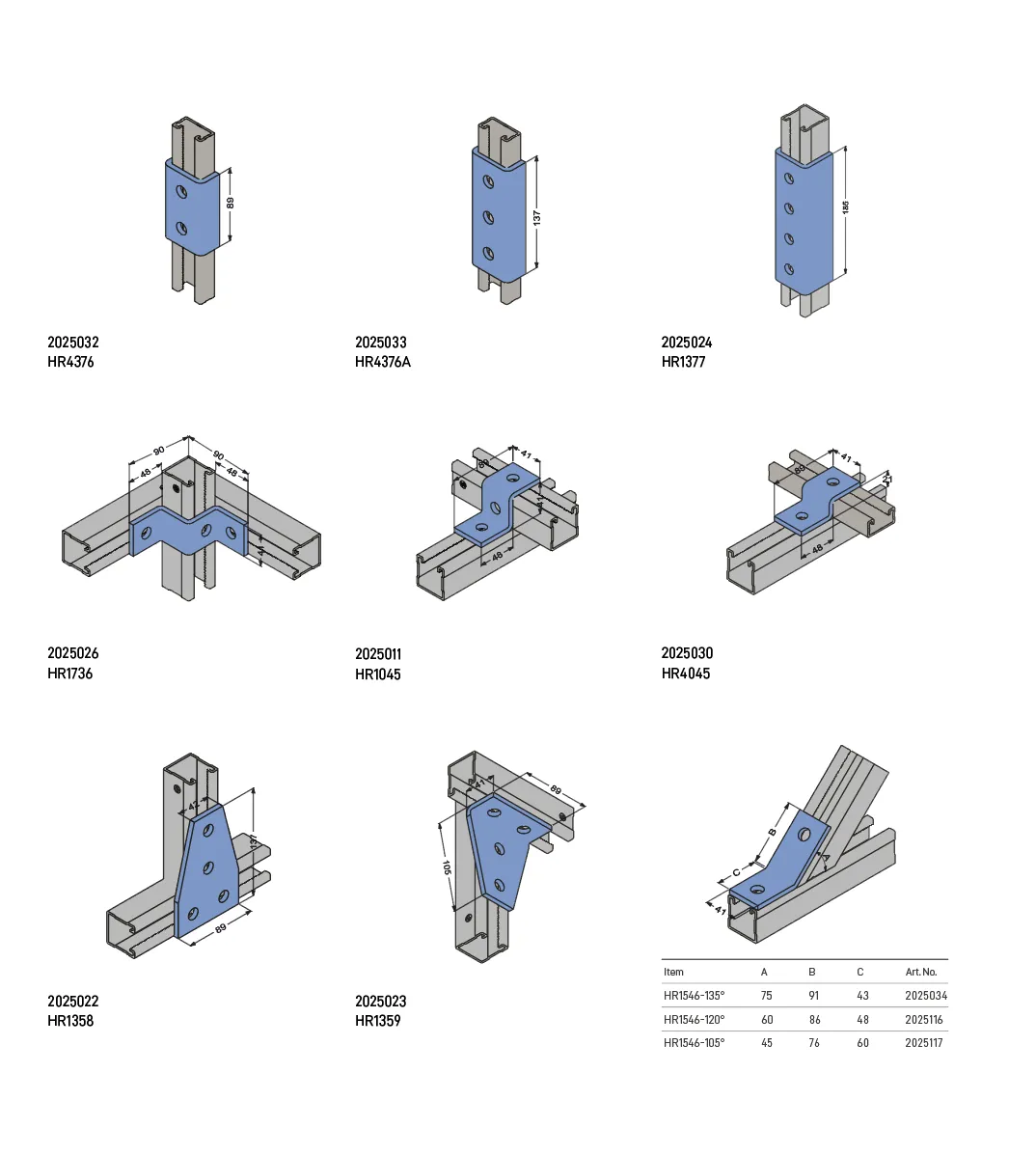

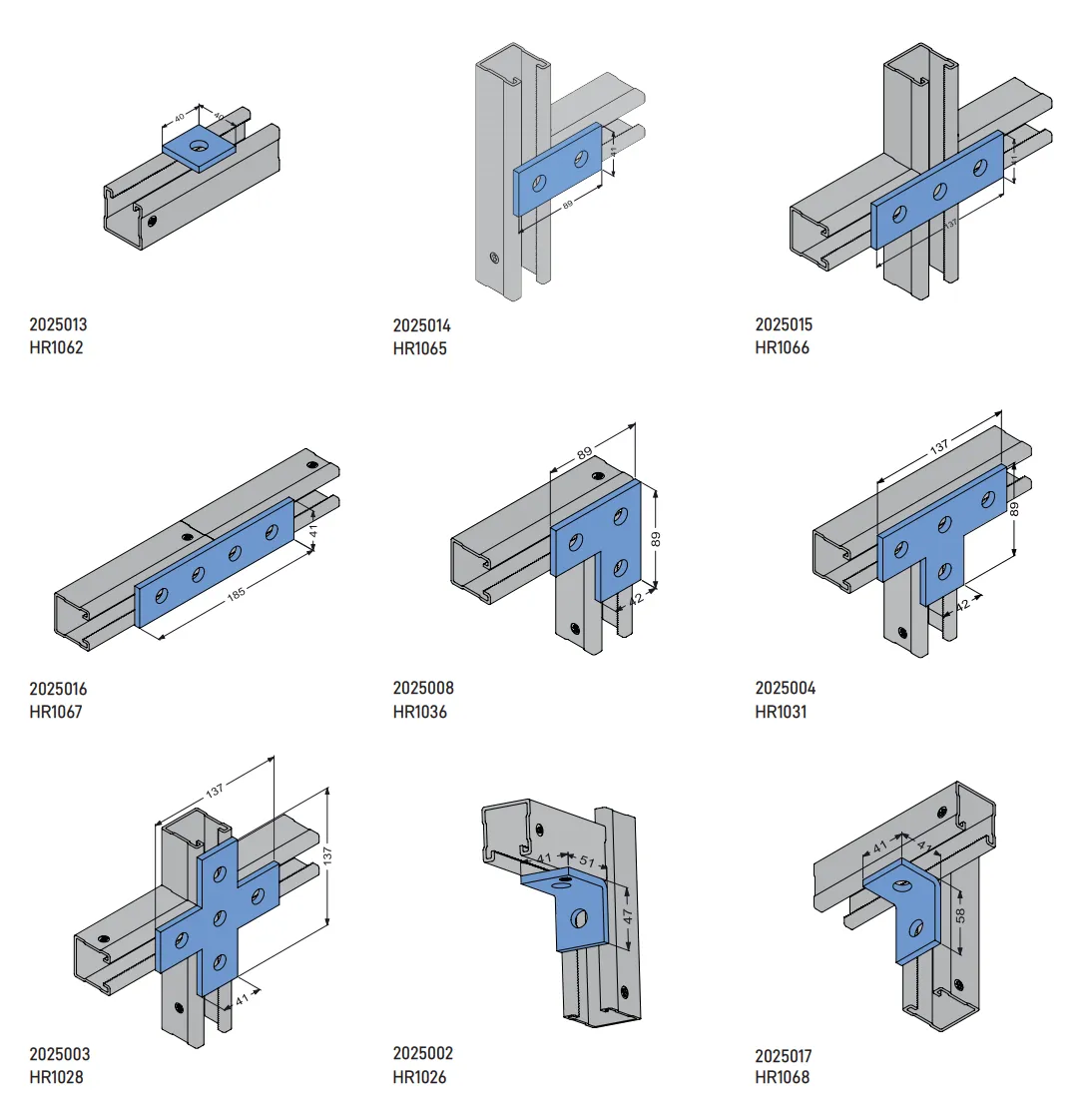

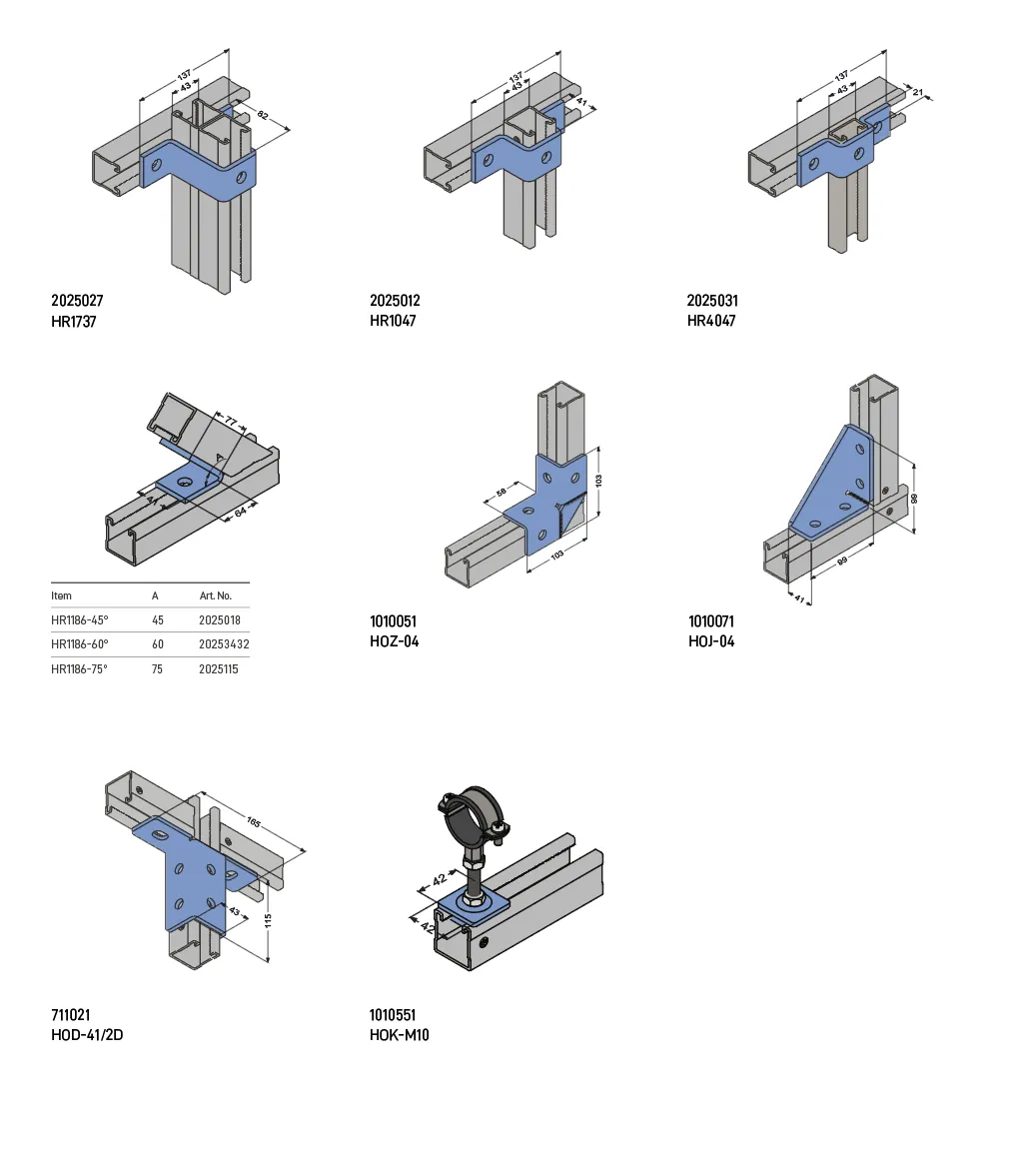

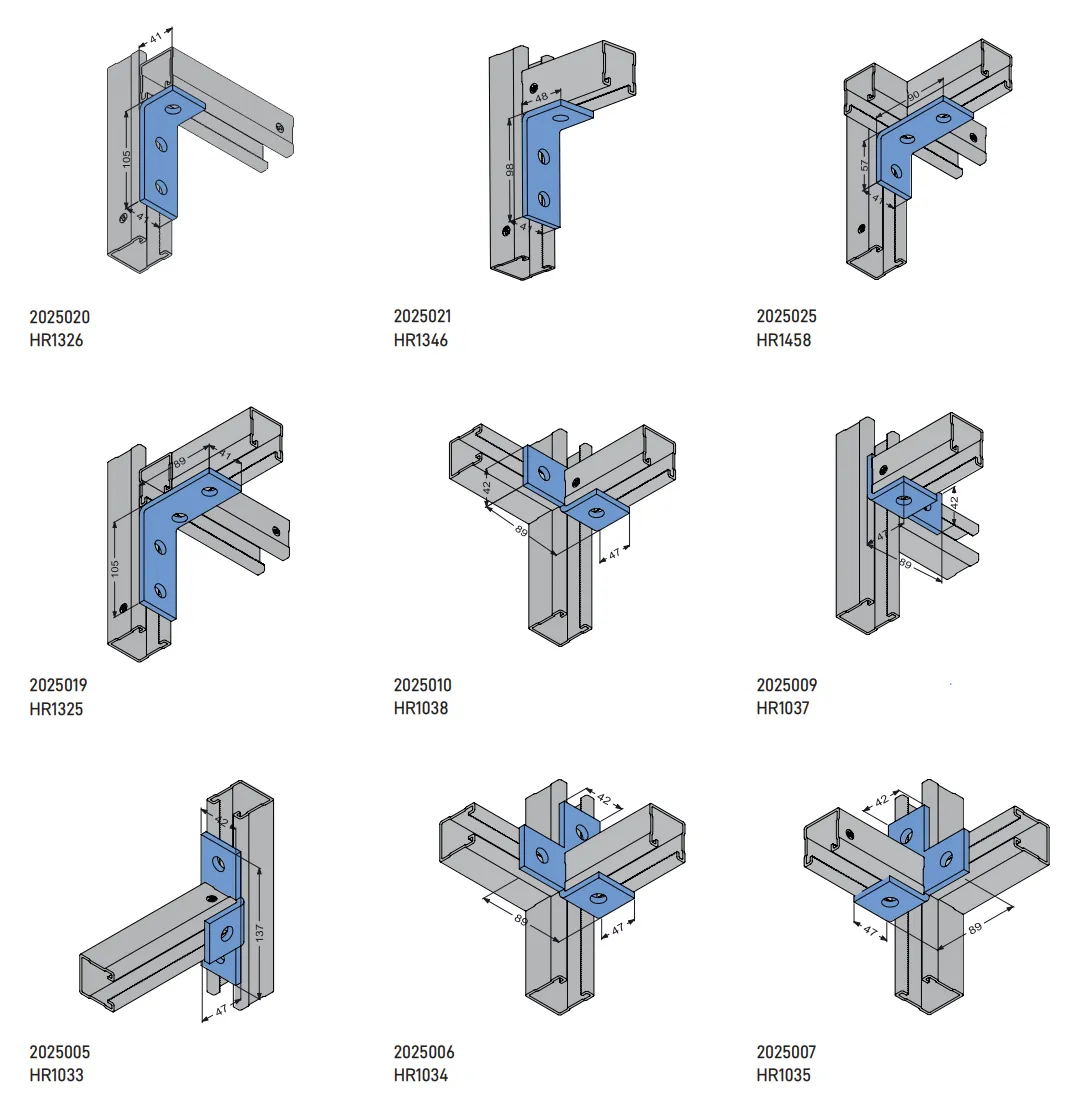

Channel Connectors
(Flat plate, 90°, Angular, "Z" Shape, "U" Shape),
Post Bases, Brackets & Other Accessories
*Fittings can be customized, and design services are available
| Material | S235JR, Complying with DIN EN 10025, Q235B, Stainless steel |
| Surface Treatment | Hot-dip zinc≥85μm |
| Installation Torque | 50N·m |
| Pore Diameter | 12mm, or customized diameter |

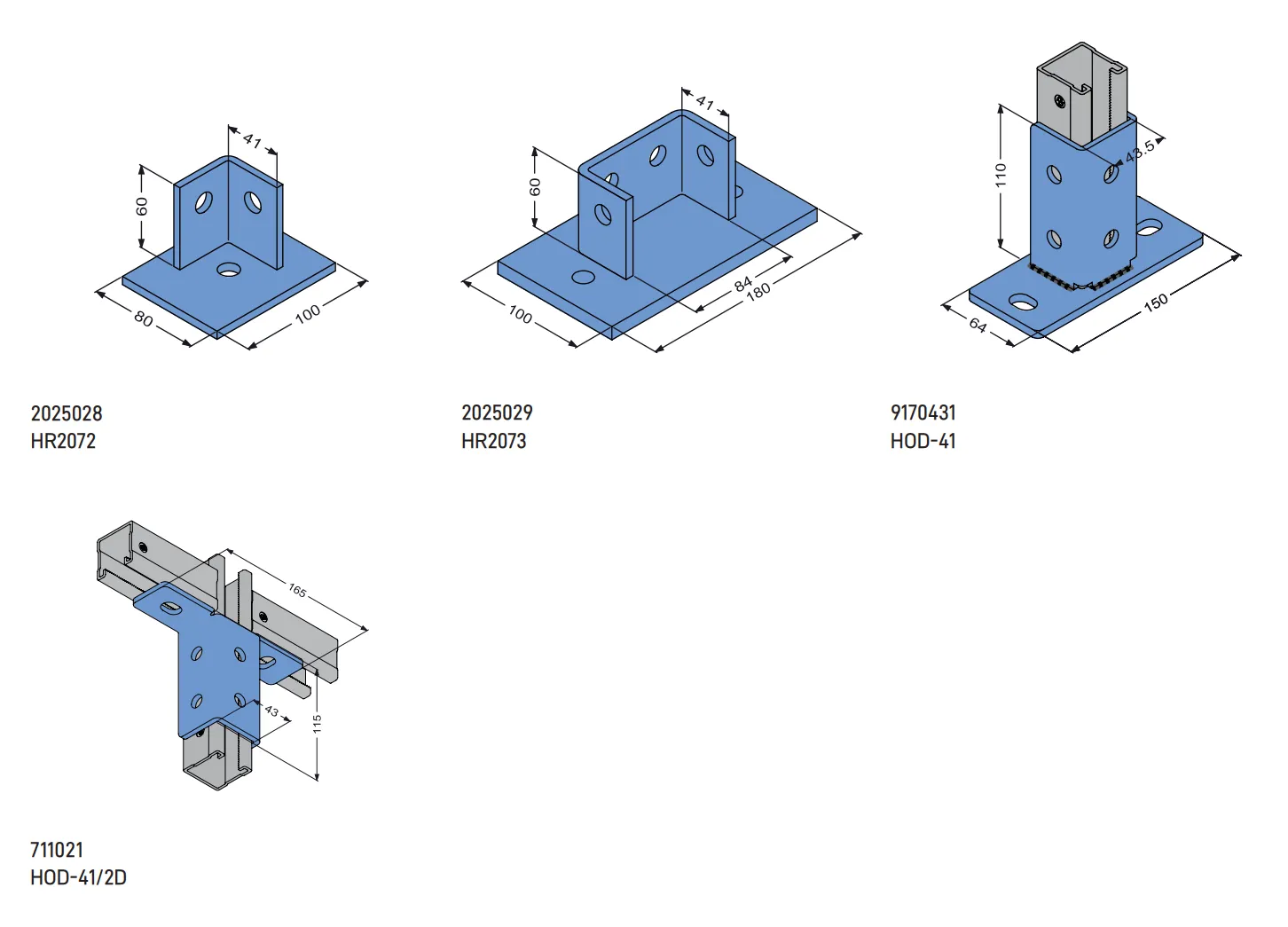

Post Bases
*Fittings can be customized, and design services are available
| Material | S235JR, Complying with DIN EN 10025, Q235B, Stainless steel |
| Surface Treatment | Hot-dip zinc≥85μm |
| Installation Torque | 50N·m |
| Pore Diameter | 12mm, or customized diameter |
